Galvanized steel plate

Galvanized Steel Plate:Professional Knowledge and Applications

1.Introduction to Galvanized Steel Plate

Galvanized steel plate is a type of carbon steel coated with a layer of zinc(Zn)to protect the base metal from corrosion and extend its service life.The primary galvanizing methods include hot-dip galvanizing(HDG)and electro-galvanizing(EG).

2.Galvanizing Processes

Hot-Dip Galvanizing(HDG)
Process:The steel plate is immersed in molten zinc(approx.450°C),forming a thick zinc layer(typically 20-50μm).
Features:Thicker coating,superior corrosion resistance,suitable for outdoor or harsh environments.
Structure:Pure zinc layer(outer)+zinc-iron alloy layer(inner,enhances adhesion).
Electro-Galvanizing(EG)
Process:Zinc is deposited onto the steel surface via electrolysis,resulting in a thinner coating(typically 3-15μm).
Features:Smooth surface,ideal for precision forming or painting,but slightly less corrosion-resistant than HDG.

3.Key Characteristics of Galvanized Steel Plate

Corrosion Resistance:Zinc acts as a sacrificial anode,oxidizing first to protect the steel.
Workability:Can be stamped,bent,or welded(EG is better for precision forming).
Surface Finish:Available in spangled,smooth,or minimized-spangle finishes.
Paint Adhesion:The zinc layer serves as an excellent base for additional coatings.

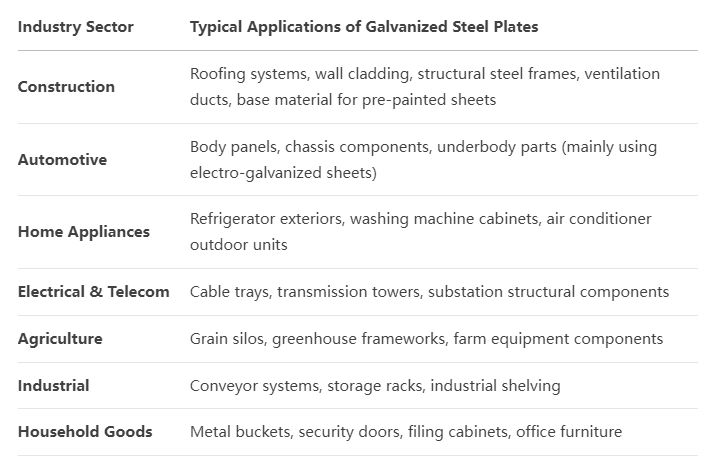

4.Main Applications

Galvanized steel plates are widely used in rust-prone industries,including:

5.Advantages and Limitations

Advantages:

More cost-effective than stainless steel while offering good rust protection.
Long service life(HDG can last 20-50 years in normal environments).
Recyclable and environmentally friendly.

6.Selection Guidelines

Outdoor/humid environments:Prefer HDG.
Precision forming/appliance panels:Choose EG.
High-temperature/coastal areas:Consider Galvalume or Zn-Mg coatings.

Conclusion

Galvanized steel plates,with their excellent rust resistance,cost efficiency,and versatility,are essential in construction,manufacturing,energy,and more.Selecting the right galvanizing method and grade ensures durability and cost-effectiveness for various applications.
