Color steel tile

Color steel tiles are a kind of lightweight roofing material widely used in the construction field. Its core features and composition are as follows:

‌1.Definition and Process‌

Colored steel tiles are called "color coated steel plate profiled tiles" in full. They are based on cold-rolled steel sheets or galvanized steel sheets. After surface degreasing and phosphating, they are coated with multiple layers of organic coatings (such as polyester, fluorocarbon, etc.), and then cured by high-temperature baking and cold-bending by rollers. Finally, they are formed into profiled sheets with cross-sectional shapes such as wavy and trapezoidal. The "color" in its name comes from the rich color coating on the surface, which can be customized in a variety of colors such as blue, red, and white.

2.Core material composition

Substrate: Commonly used cold-rolled steel, galvanized steel or galvanized steel, of which galvanized steel has stronger corrosion resistance and a lifespan of up to 50 years.
Polyester (PE): Basic model, low cost but average weather resistance (lifespan 7-10 years).
PVDF: High-end coating, strong UV resistance, no fading for 20 years, suitable for harsh environments.
Nano coating: New technology, adding nano titanium dioxide and other materials, with self-cleaning and super weather resistance.

‌3.Core Advantages‌

‌Lightweight and high strength‌: The thickness is only 0.3-1.2mm, light weight but excellent load-bearing capacity, suitable for large-span buildings‌.

‌Convenient construction‌: Modular design, can be quickly spliced and installed, and the construction period is shortened by 50% compared with traditional materials‌.

‌Economical‌: Low price (about 20-80 yuan per square meter) and low maintenance cost‌.

‌Versatility‌: Some products are composited with rock wool or foam layer, which has both heat insulation and sound insulation effects‌.

4.Main application scenarios

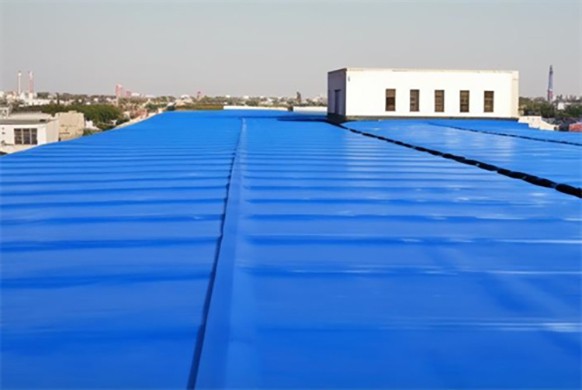

Industrial buildings: factories, warehouses, logistics centers, etc. (accounting for more than 60%). Civilian fields: rural self-built houses, villa roof renovations, and temporary buildings. Special uses: agricultural greenhouses, municipal facilities, etc. Some high-end models are used in highly corrosive environments such as coastal or chemical industries.

Color coated steel tile (also known as colored coated tile) is a profiled plate made by rolling and cold bending colored coated steel plates into various wave shapes. It is suitable for roofs, walls, and interior and exterior wall decorations of industrial and civil buildings, warehouses, special buildings, and large-span steel structure houses. It has the characteristics of light weight, high strength, rich color, convenient and fast construction, earthquake resistance, fire resistance, rain resistance, long service life, and maintenance free. It has been widely promoted and applied.

Our company's color steel tiles offer a variety of tile shape options and customized services, which can be recommended and customized according to the specific situation of the building, such as span, purpose, environment, and other factors.
