What are the different types of color coated coil?

With the continuous advancement of material performance and aesthetic requirements in construction, home appliances, transportation, and industrial manufacturing, color coated coils have become an indispensable material in modern manufacturing due to their excellent corrosion resistance, visual appeal, and processing properties. Using metal coils as the substrate, color-coated coils form vibrant, high-performance composite materials through organic coating application. They are widely used in roofing panels, wall panels, appliance housings, transportation equipment, decorative components, and other fields.

1. Basic Concept of Color Coated Coils

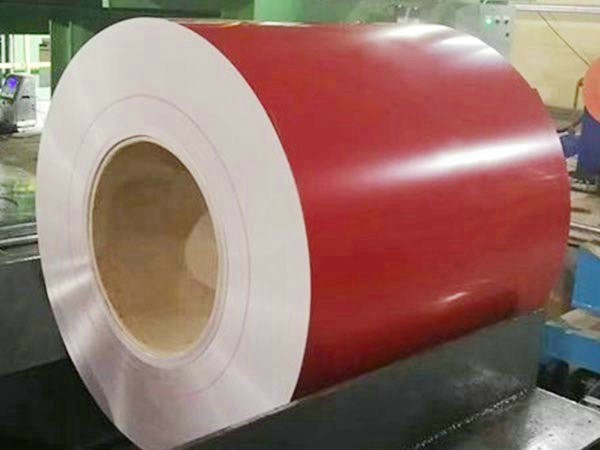

Color coated coils refer to coiled sheets with pre-applied organic coatings on metal substrates. Typically manufactured using galvanized steel coils, aluminum coils, or stainless steel coils as base materials, they undergo surface pretreatment, coating application, baking, and cooling processes. Compared to traditional spray painting, color-coated coils offer more uniform coating distribution, superior adhesion, high weather resistance, and excellent decorative properties.

Color coated coils can be categorized into various types based on coating systems, applications, substrate materials, and other dimensions to meet diverse environmental and industrial requirements.

2. Types of Color Coated Coils Classified by Coating System

One of the most significant classification methods for color coated coil is based on the coating system. The coating is a key factor determining the coil's performance, with different types exhibiting distinct characteristics in weather resistance, chemical resistance, abrasion resistance, and gloss.

(1) Polyester (PE) Color Coated Coils

Polyester color-coated coils are the most common type on the market. Their coating primarily uses polyester resin, offering excellent adhesion and mechanical properties.

- Features: Tough coating, easy to process and form; good UV resistance and weatherability; relatively low cost with high cost-effectiveness; suitable for environments with mild climatic conditions.

- Applications: Widely used in roofing panels, interior partitions, appliance liners, and other applications requiring high aesthetics but moderate corrosion resistance.

(2) Silicone-Modified Polyester (SMP) Color Coated Coils

Silicone-modified polyester color-coated coils incorporate silicone resin into the polyester coating, significantly enhancing weather resistance and hardness.

- Features: Superior weather resistance compared to standard polyester; high surface hardness with scratch resistance; excellent color retention maintaining gloss outdoors over extended periods; suitable for mid-to-high-end architectural decoration applications.

- Applications: Widely used on industrial building exteriors, roofs, steel structures, and other environments demanding high durability.

(3) Fluorocarbon (PVDF) Color Coated Coils

Fluorocarbon color-coated coils utilize polyvinylidene fluoride (PVDF) resin coatings, ranking among the highest-performing types. Their exceptional weather resistance makes them ideal for high-end architecture and harsh environments.

- Features: Superior UV resistance and corrosion resistance; long-term performance under extreme climates (high temperatures, high humidity, acid rain, etc.); color retention exceeding 20 years without fading; strong coating adhesion and excellent resistance to chalking.

- Applications: High-end curtain wall buildings, airports, subway stations, port facilities, chemical plant equipment casings, etc.

(4) High-Durability Polyester (HDP) Color Coated Coil

Positioned between SMP and PVDF, HDP polyester color-coated coil offers a balanced solution of cost-effectiveness and weather resistance.

- Features: Excellent UV resistance and color retention; suitable for medium-to-long-term outdoor use; smooth coating with high color saturation; strong resistance to chalking.

- Applications: Industrial building exteriors, warehouses, residential roofs, transportation infrastructure, etc.

(5) Acrylic (AC) Color Coated

Acrylic-coated color coated coils offer superior gloss and stain resistance, commonly used in applications demanding high aesthetic standards.

- Features: Smooth, glossy surface finish; easy to clean with strong stain resistance; excellent color retention; relatively low cost.

- Applications: Home appliance housings, decorative panels, display components, etc.

3. Types of Color Coated Coils Classified by Substrate Material

- Cold-Rolled Substrate Color Coated Coils: Utilizing cold-rolled steel sheets as the substrate, these coils feature a relatively flat and smooth surface with excellent workability, capable of meeting various complex shaping requirements. Since cold-rolled steel lacks inherent rust resistance, this type of color-coated coil is typically used in indoor environments or applications with low corrosion resistance demands, such as interior decoration and lightweight appliance casings.

- Hot-dip galvanized substrate color coated coils: Utilizing hot-dip galvanized steel sheets as the substrate, the hot-dip galvanized coating provides excellent rust protection. These coils offer superior corrosion resistance, making them suitable for outdoor applications like building roofs and walls. They can withstand long-term exposure to natural elements, extending service life.

- Electrogalvanized substrate color coated coils: The electrogalvanized coating is uniform and fine, resulting in a smoother, more aesthetically pleasing surface. Its corrosion resistance surpasses that of cold rolled substrate color-coated coils but falls short of hot-dip galvanized substrate color coated coils. Commonly used in applications demanding higher surface quality and relatively mild corrosion environments, such as electronic equipment casings and furniture panels.

- Aluminum-zinc coated substrate color coated coils: Aluminum-zinc coated steel sheets feature an alloy coating composed of aluminum, zinc, silicon, and other elements applied to the steel surface. This coating offers excellent high-temperature resistance, atmospheric corrosion resistance, and superior thermal reflectivity. Aluminum-zinc coated substrate color-coated coils are commonly used for roofing and wall cladding in industrial buildings, as well as equipment protection in high-temperature environments.

The substrate of color-coated coils determines their strength, corrosion resistance, and formability. Common substrates include galvanized steel, aluminum-zinc coated steel, and aluminum sheet.

4. Types of Color Coated Coils by Application

Different sectors demand varying performance characteristics from color-coated coils. Below are several primary types categorized by application:

(1) Architectural Color Coated Coils

Primarily used for roofing panels, wall panels, ceilings, doors/windows, railings, and other building structures.

- Features: Excellent weather resistance; fireproof and corrosion-resistant; strong decorative appeal; service life exceeding 20 years.

(2) Home Appliance Color Coated Coils

Used for the outer casings of refrigerators, washing machines, air conditioners, ovens, microwave ovens, and other appliances.

- Features: Smooth surface with uniform color; excellent fingerprint resistance and stain resistance; high workability; meets precision assembly requirements.

(3) Furniture and Decorative Color Coated Coils

Used for cabinets, door panels, ceiling panels, interior decorative panels, etc.

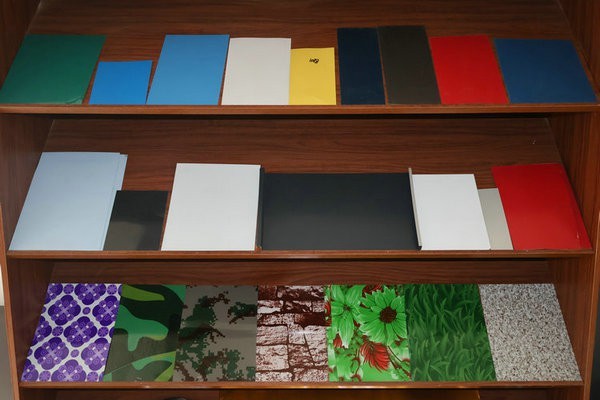

- Features: Excellent decorative effect; Capable of achieving diverse surfaces like wood grain, stone texture, and metallic finishes; Easy to clean; Meets environmental standards.

(4) Color Coated Coils for Transportation

Used in automotive bodies, ship interiors, containers, and rail transit vehicle bodies.

- Features: Lightweight; Vibration-resistant and wear-resistant; UV-resistant and corrosion-resistant; Long service life.

5. Advantages of Color Coated Coils

(1) Superior Decorative Properties: Through diverse coating formulations and application techniques, color coated coils deliver rich color variations and surface textures—including matte, glossy, wood-grain, and stone-effect finishes—to meet architectural styles and product design demands, enhancing overall aesthetics.

(2) Superior corrosion resistance: Different substrate-coating combinations provide varying levels of corrosion resistance. Hot-dip galvanized or aluminized substrates paired with high-performance coatings effectively block atmospheric oxygen, moisture, and chemical corrosion, extending service life and reducing maintenance costs.

(3) Excellent Formability: Color coated coils inherit the superior formability of their substrate, enabling diverse processing operations such as shearing, bending, stamping, and roll forming. This facilitates the creation of products in various shapes, adapts to different application scenarios, and streamlines production and fabrication.

(4) Lightweight: Compared to traditional building materials or metals, color-coated coils are lighter in weight. This not only reduces transportation costs but also lessens structural loads on buildings, benefiting structural design and construction. They are particularly suitable for applications with strict weight requirements, such as large-span steel structures.

(5) Easy Installation: Panels made from color coated coils are simple to install and allow for rapid construction, significantly shortening project timelines. For instance, in construction, the rapid installation of color-coated coil panels enhances work efficiency and reduces labor costs.

(6) Eco-Friendly and Energy-Efficient: Coatings and production processes for color coated coils continuously evolve toward environmental sustainability, minimizing harmful emissions. Additionally, substrates like aluminum-zinc coatings possess excellent thermal reflectivity, helping reduce building energy consumption and achieving energy-saving and eco-friendly objectives.

Color coated coils, as a high-performance, sustainable metal material, offer diverse types and rich functionalities. Whether utilizing polyester, fluorocarbon, or silicone-modified systems, and whether applied to galvanized, galvanized-aluminum, or stainless steel substrates, color coated coils demonstrate formidable competitiveness across construction, home appliances, transportation, and other sectors. With advancements in new materials and green manufacturing technologies, future color coated coils will evolve toward enhanced weather resistance, superior adhesion, and reduced energy consumption, continuing to spearhead material innovation trends in modern industry and architecture.
