What is C shaped steel used for?

In modern construction and manufacturing, C shaped steel is increasingly playing an irreplaceable role as an efficient, lightweight structural material. Its name derives from its cross-sectional shape resembling the letter ‘C’. Formed through cold-forming or hot-rolling processes, it combines strength with cost-effectiveness and is widely used in structural engineering, equipment manufacturing, and transportation sectors.

1. Definition and Fundamental Characteristics of C Shaped Steel

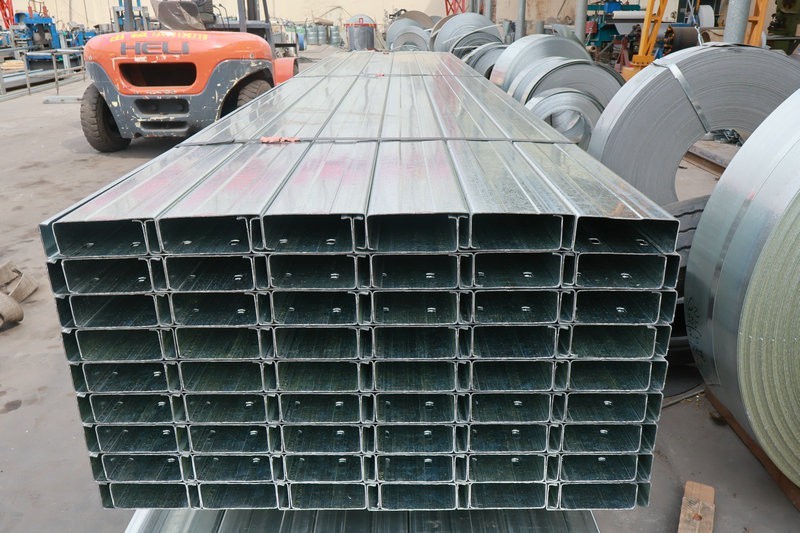

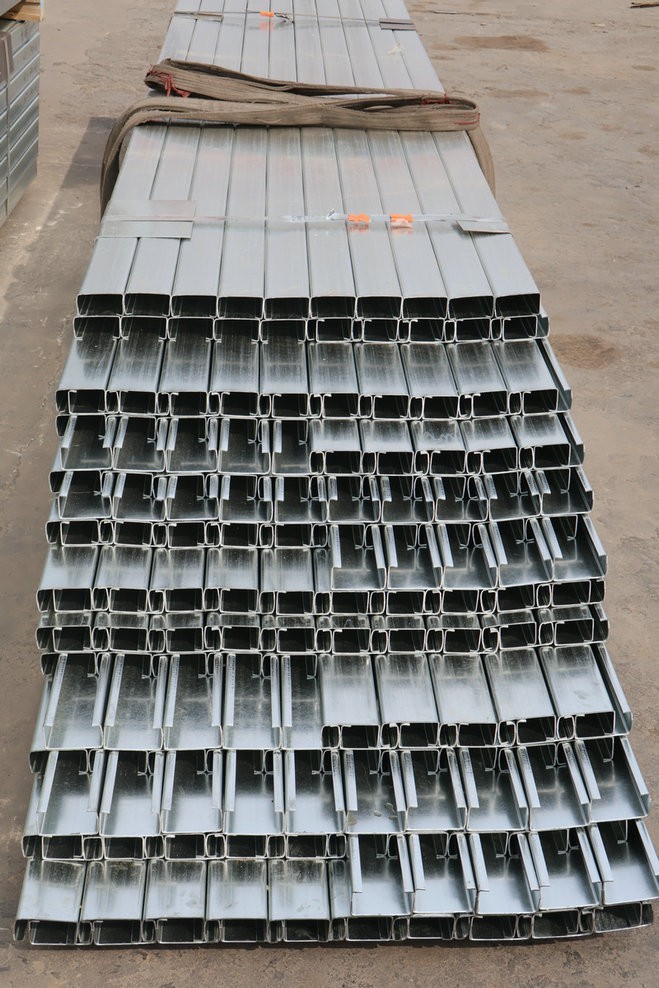

C shaped steel is a shaped steel manufactured through cold-forming processes, named for its cross-sectional resemblance to the letter ‘C’. Typically formed by rolling hot-rolled or cold-rolled steel plates, it features light weight, high strength, and ease of installation. Depending on application, C shaped steel may be fabricated from ordinary carbon steel (e.g., Q235) or low-alloy steel (e.g., Q345). Standard thickness ranges from 1.5mm to 6mm, with heights varying between 40mm and 300mm (refer to GB 50018 Technical Specification for Cold-Formed Thin-Walled Structural Steel).

Compared to traditional sections like I-beams and channel sections, C-shaped steel offers distinct advantages:

(1) Lightweight: Thin-walled and hollow construction reduces material usage by over 30% compared to solid steel of equivalent load-bearing capacity;

(2) High customisability: Different dimensions and flange orientations can be produced by adjusting the roll forming dies;

(3) Environmental sustainability: The manufacturing process eliminates high-temperature smelting stages, consuming only one-fifth of the energy required for hot-rolled sections.

2. Processing Methods for C Shaped Steel

The primary processing methods for C shaped steel comprise cold-forming and hot-rolling, each suited to distinct application scenarios.

(1) Cold-Forming Process

Cold forming is one of the most common processing methods for C-shaped steel, suitable for most light and medium-duty structural components. This process is conducted at ambient temperatures, progressively bending steel plates into the desired C-shaped cross-section through a series of rollers.

Key steps:

- Raw material preparation: Select standard-compliant cold-rolled or hot-rolled steel plates as raw material.

- Uncoiling and flattening: Coiled sheets are unwound and flattened to ensure a smooth, undistorted surface.

- Pre-punching (optional): Installation holes or other openings are pre-punched into the sheet according to design specifications.

- Cold bending: The sheet is progressively bent into the C-section profile through multiple passes through a multi-pass rolling mill. Each pass employs differently shaped rollers to progressively achieve the final cross-sectional form.

- Cutting: Formed C-shaped steel is cut to required lengths using shearing machines or laser cutting equipment.

- Quality Inspection: Finished products undergo dimensional, visual, and mechanical property testing to ensure compliance with relevant standards.

(2) Hot-Rolled Forming Process

Hot-rolled forming is a high-temperature processing method suitable for heavy structural components. This process involves heating steel plates to soften them, then shaping them into the desired C-shaped cross-section using rollers.

Key steps:

- Raw Material Preparation: Select carbon structural steel or low-alloy high-strength steel meeting standards as raw material.

- Heating: Heat steel plates to 800–1200°C to soften them for subsequent forming.

- Rolling: The plate is progressively rolled into a C-shaped cross-section through multiple passes using rollers of varying profiles, gradually achieving the final cross-sectional form.

- Cooling: The formed C-shaped steel undergoes natural or forced cooling to return to ambient temperature.

- Quality Inspection: Finished products undergo dimensional, visual, and mechanical property testing to ensure compliance with relevant standards.

3. Primary Functions of C-Shaped Steel

(1) Support Function: The cross-sectional shape of C-shaped steel provides excellent bending resistance, enabling it to effectively support and bear the weight of buildings or structures. In bridges and high-rise buildings, C-shaped steel serves as a primary structural support element, ensuring stability and safety.

(2) Connecting Function: Another significant role of C-shaped steel is connection. Through welding or bolted joints, C-shaped steel connects individual components to form a complete structural system. This connection method not only ensures the integrity of the structure but also enhances its load-bearing capacity and stability.

(3) Corrosion Protection: C-shaped steel typically undergoes surface treatments during production, such as painting or galvanising, to improve its corrosion resistance. This enables C-shaped steel to maintain a prolonged service life even under harsh environmental conditions, thereby reducing maintenance costs.

(4) Aesthetic function: The cross-sectional shape of C-shaped steel is clean and straightforward, with smooth lines conveying a modern aesthetic. In architectural design, C-shaped steel is frequently employed as a decorative element, complementing other parts of the building and enhancing the overall visual appeal.

4. Primary Applications of C-Section Steel

(1) Machinery and Equipment Manufacturing:

C shaped steel is frequently employed as the base and worktable support for machine tools. These components must withstand vibrations and impacts generated during machine operation, with the high strength and stability of C shaped steel ensuring stable machine tool performance. In the manufacture of various automated equipment and production lines, C shaped steel is also commonly used to construct support structures, frames, and connecting components to meet equipment requirements for precision and stability.

(2) Rail Transit Vehicle Manufacturing:

In the production of rail transit vehicles such as metros and high-speed trains, C shaped steel forms the skeletal framework of the vehicle body. These structures must bear the train's weight and withstand various forces during operation. The lightweight yet high-strength properties of C shaped steel help reduce vehicle weight and enhance operational efficiency. Additionally, C shaped steel is employed in the support structures for interior components like seats and handrails, ensuring passenger comfort and safety.

(3) Electronic Equipment Manufacturing:

Within the electronics manufacturing sector, C shaped steel is employed for constructing equipment racks, enclosures, and support frameworks. These components require effective thermal dissipation and electromagnetic shielding properties, which C-section steel's material composition and structural design can fulfil.

Furthermore, C shaped steel facilitates the production of test benches and jigs for electronic devices, providing stable support platforms for both research and development and manufacturing processes.

(4) Semiconductor Manufacturing:

Within semiconductor production, C shaped steel serves as the structural framework for cleanroom environments. As critical environmental control facilities in semiconductor fabrication, cleanrooms rely on the cleanliness and stability of C shaped steel to ensure operational integrity and product quality.

(5) Other Manufacturing Applications:

C shaped steel is also extensively employed across multiple sectors including automotive manufacturing, shipbuilding, and aerospace manufacturing. In automotive production, it forms the skeletal framework and chassis components of vehicle bodies; in shipbuilding, it constitutes the supporting structures and deck frameworks of hulls; whilst its application in aerospace manufacturing is relatively limited, it serves in auxiliary structures and support components.

5. Recommendations for Selecting and Using C Shaped Steel

To ensure project quality and economic efficiency, the following points should be considered when selecting and using C shaped steel:

(1) Define usage requirements: Determine material grade, thickness, and corrosion protection level based on load-bearing demands and operating environment. Galvanized products should be prioritised for humid or corrosive conditions.

(2) Verify product certification: C shaped steel from reputable manufacturers must provide material certificates and compliance documentation meeting national standards.

(3) Prioritise dimensional accuracy: Inspect cross-sectional dimensions, straightness, and distortion. Excessive deviations compromise installation quality and performance.

(4) Optimize connection design: Reinforce end joints appropriately to prevent premature failure from stress concentration.

(5) Transport and storage precautions: Secure long sections during transit to prevent deformation. Store on level surfaces, shielded from moisture and heavy pressure.

(6) Regular maintenance inspections: Periodically assess the condition of the anti-corrosion coating during use, promptly repair damaged sections to extend service life.

As an efficient structural profile in modern industry and construction, C shaped steel continually expands its application scope through lightweight properties, high strength, and excellent customisability. From traditional building purlins to high-end electronics and rail transit manufacturing, C shaped steel demonstrates formidable adaptability and market competitiveness. It is foreseeable that with the deepening development of green building materials and intelligent manufacturing, C shaped steel will play an increasingly vital role in future engineering projects, becoming a key driver for industrial upgrading and structural optimisation.
