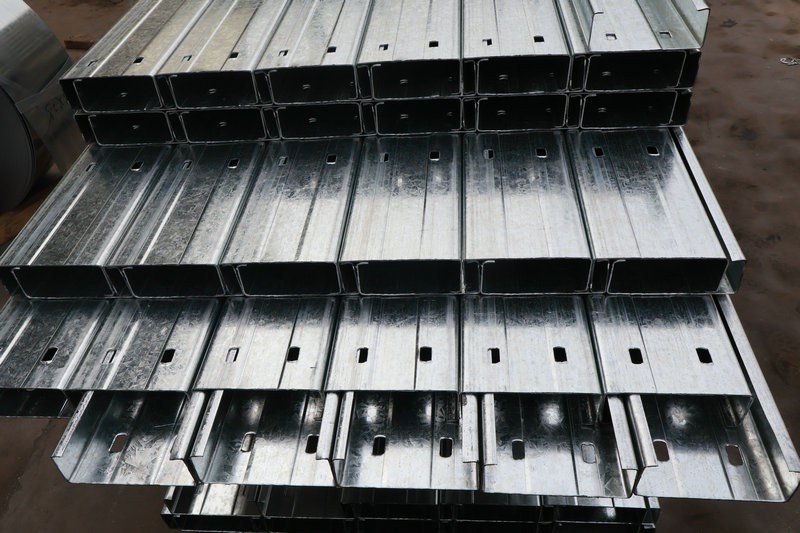

C shaped steel beam dimensions

In recent years, with the rapid development of construction, engineering, and manufacturing industries, C shaped steel beam dimensions, as an important type of steel, is gradually becoming a popular choice in the market. Recently, there has been a series of exciting news in the C shaped steel beam dimensions industry, indicating that this field is about to usher in new development opportunities.

The size specifications of C shaped steel beam dimensions are diverse, usually determined based on its height, width, thickness, and edge width (if any). Here are some common size specifications for C shaped steel beam dimensions:

1. Height

The height of C shaped steel beam dimensions is usually between 50mm and 300mm, and common specifications include:

80mm, 100mm, 120mm, 140mm, 160mm, 200mm, 250mm, 300mm

2. Width

The width range is similar to the height, also between 50mm and 300mm. Common width specifications include:
50mm, 100mm, 150mm, 200mm, 250mm, 300mm

It should be noted that the width of C shaped steel beam dimensions usually corresponds to its height, forming a certain proportional relationship.

3. Thickness

Thickness is an important parameter in its dimensional specifications, which determines the strength and rigidity of C shaped steel beam dimensions. Common thickness specifications include:

1.5mm.2mm.3mm.4mm.5mm.6mm.8mm.10mm

4. Edge width (some specifications)

Some specifications of C shaped steel beam dimensions also include the width of the rolled edge, which is usually used to increase the cross-sectional rigidity and load-bearing capacity of C shaped steel beam dimensions. The specific value of the rolled edge width will vary depending on the height and width of the C shaped steel beam dimensions.

5. Specific specification examples

Here are some specific examples of C shaped steel beam dimensions specifications for reference:
C80 × 40 × 20 × 2.5: Section height 80mm, section width 40mm, rolled edge width 20mm, thickness 2.5mm.
C100 × 50 × 15 × 2: Section height 100mm, section width 50mm, rolled edge width (unless otherwise specified, this dimension may not be included or zero), thickness 2mm.
C250 × 75 × 20 × 2.5: Section height 250mm, section width 75mm, rolled edge width 20mm (or depending on specific design), thickness 2.5mm.

In addition, there are some special specifications of C shaped steel beam dimensions, such as cross-sectional dimensions of 21mm width, 41mm height, and 1.5mm waist thickness. These special specifications are typically used to meet specific engineering requirements.

6. Length

The length of C shaped steel beam dimensions is usually customized according to engineering needs, generally not exceeding 12 meters. The standard length may vary by manufacturer and region, but 6 meters is a common standard length.
In summary, the size specifications of C shaped steel beam dimensions are diverse, and the specific choice of specification depends on engineering requirements, material properties, and cost considerations. When choosing C shaped steel beam dimensions, it is recommended to consult a professional engineer or supplier to ensure that the selected specifications meet the actual needs of the project.
