What is C-shaped steel section?

A C-shaped steel section, in simple terms, is a cross-sectional shape made of steel through cold bending forming technology. Its outer contour resembles the English letter "C", and is formed by a steel plate that is cold bent by a machine to form a unique structure with parallel upper and lower flanges and inward curled edges. This cross-sectional design cleverly integrates mechanical principles, and the rolled edge not only enhances the torsional stiffness of the structure, but also effectively disperses stress, making customize C-shaped steel perform well under vertical and horizontal loads. Compared to traditional hot-rolled steel, C-shaped steel has a thinner and lighter cross-section, but can provide higher bending and shear resistance under the same weight. At the same time, due to its high material utilization and convenient processing, it has become an indispensable structural material in fields such as construction, machinery, and vehicle manufacturing. From lightweight steel frames in industrial plants to shelving systems in logistics and warehousing, C-shaped steel sections are constantly expanding their application boundaries due to their economy and adaptability, becoming a typical representative of "small sections, big achievements" in modern engineering.

1. Definition and Morphological Analysis of C-shaped Steel Section

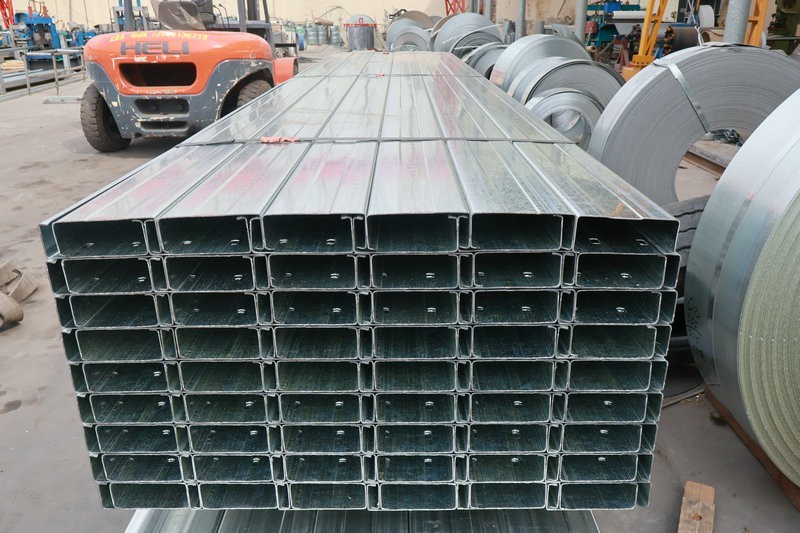

As the name suggests, a C-shaped steel section refers to steel with a cross-sectional shape similar to the English letter "C". From a geometric perspective, it is a groove shaped cross-section with a single opening. A standard C-shaped steel section is mainly composed of three parts:
1. Upper and lower flanges: Two horizontal parts that are parallel and of equal length in a cross-section, similar to the upper and lower horizontal sections of the letter "C". They are the main parts that bear bending loads and provide connection surfaces.
2. Web plate: The vertical part that connects the upper and lower flanges, like the vertical pen of the letter "C". The belly plate mainly bears the shear force and ensures the overall height of the section, thereby providing excellent bending resistance.
3. Curling: This is a crucial feature of C-shaped steel. At the end of its wing edge, a small bend will be made inward or outward, forming a structure similar to a small hook. The presence of curled edges greatly enhances the local stability of the flange, preventing it from easily buckling under stress, thereby improving the load-bearing efficiency of the entire section.
The specifications of C-shaped steel are usually identified by its cross-sectional dimensions, such as C80 × 40 × 15 × 2.0, where "80" represents a cross-sectional height (web height) of 80 millimeters, "40" represents a flange width of 40 millimeters, "15" represents a rolled edge width of 15 millimeters, and "2.0" represents a steel thickness of 2.0 millimeters. This standardized naming convention facilitates design, procurement, and construction.

It should be distinguished that C-shaped steel is different from similar channel steel. The inner wall of the flange of traditional hot-rolled channel steel has a certain slope, and the flange is relatively thick without a rolled edge at the end. C-shaped steel is usually produced through cold bending forming process, with relatively uniform and thin wall thickness, and distinctive rolled edges. Therefore, C-shaped steel is also known as "cold-formed rolled edge channel steel" or "C-shaped purlin", which accurately summarizes its manufacturing process and core applications.

2. Core characteristics and advantages of customize C-shaped steel

The reason why C-shaped steel has become a darling in the engineering field is due to its excellent mechanical properties and comprehensive economic advantages brought by its cross-sectional shape.

1. Excellent strength to weight ratio

This is the most prominent advantage of C-shaped steel. Its C-shaped open cross-section belongs to the category of "efficient cross-section" in material mechanics. It distributes materials as far away from the central axis (neutral axis) of the cross-section as possible, thereby obtaining the maximum moment of inertia of the cross-section with the least amount of material. This means that when subjected to bending loads, C-shaped steel can exhibit extremely high bending resistance while being lightweight. This not only saves material costs, but also reduces the requirements for supporting structures, facilitating transportation and installation.

2. Excellent stability

As mentioned earlier, rolled edges are the soul design of C-shaped steel. Thin walled components are prone to local instability under pressure, resulting in wavy distortion of the flanges or web plates. Curling provides a strong boundary constraint for the flange, as if adding a "reinforcing rib", significantly increasing the critical buckling stress of the flange and ensuring that the section does not experience local failure before reaching the overall yield strength.

3. Good processability and connectivity

The geometric shape of C-shaped steel makes it very easy to process and connect. Its flat flange provides an ideal platform for bolted connections, welding, or other fastening methods. In architecture, it can be easily assembled with C-shaped steel or other components of the same cross-section (such as square steel pipes, H-beams) through connectors to form a stable frame system. In addition, it is also easy to cut, drill, and cold bend to meet different design requirements.

4. Economy and high material utilization rate

Cold bending forming process is an efficient continuous production process with extremely low material loss and high production efficiency, which makes the cost of C-shaped steel relatively low. Meanwhile, its lightweight and high-strength characteristics mean that less steel is used while achieving the same structural performance, thereby reducing the overall project cost. In terms of design, different thicknesses and sizes of C-shaped steel can be flexibly selected according to the stress conditions of different parts, achieving precise material configuration and avoiding waste.

5. Unified specifications, easy to standardize

The production of C-shaped steel strictly follows national standards, with precise dimensions and stable quality. This lays the foundation for modular design and prefabricated construction, greatly improving engineering efficiency and quality controllability.

3. Production process of C-shaped steel: Cold bending forming technology

The vast majority of C-shaped steel is manufactured through cold bending forming process. This process does not involve heating and is carried out at room temperature.
The basic process is as follows:
1. Raw material preparation: Use high-quality cold-rolled or hot-rolled steel coils as raw materials.
2. Uncoiling and Leveling: The steel coil is unfolded and its inherent curling stress is eliminated by a leveling machine to make it flat.

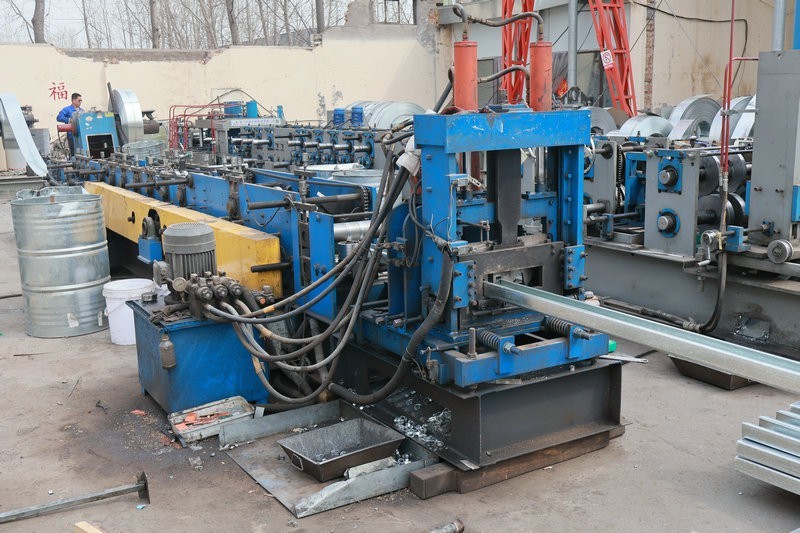

3. Roll forming: This is the core step. The flat strip steel passes through a series of carefully designed forming rollers in sequence. Each pair of rollers undergoes a small, gradual bending of the steel, gradually shaping it from a flat plate into the final C-shaped cross-section. This process is smooth and continuous, with little impact on material properties.
4. Fixed length cutting: Continuously formed C-shaped steel is precisely cut by flying saws or cutting equipment according to the preset length.

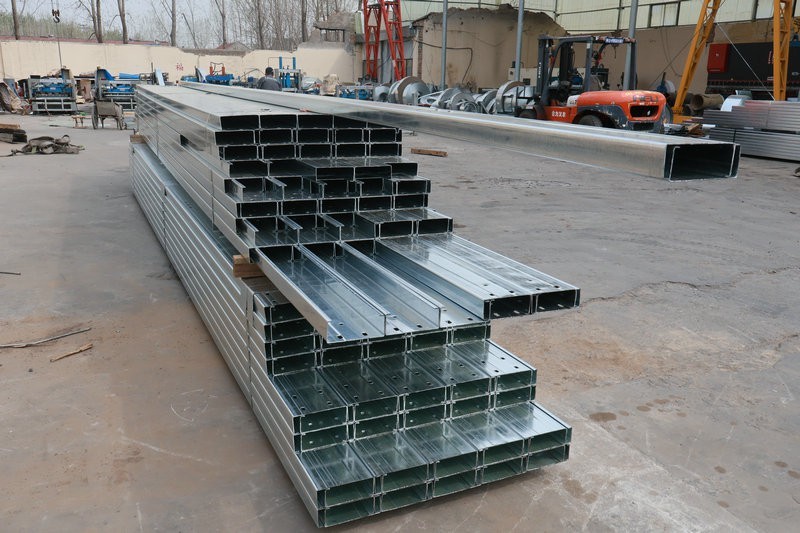

5. Collection and packaging: The cut finished products are collected, inspected, and packaged before leaving the factory.

The advantages of cold bending technology lie in its fast speed, low energy consumption, good surface quality (able to retain the galvanized layer or color coating), and the ability to easily adjust the cross-sectional size by replacing the rolling mill, achieving production flexibility.

4. The wide application fields of C-shaped steel

With the above advantages, customize C-shaped steel is widely used in various industries.

1. In the field of architectural structures

-Roof purlins and wall beams: This is the most classic and widely used application of C-shaped steel. In steel structure buildings such as industrial plants, warehouses, and shopping malls, C-shaped steel serves as roof purlins and wall beams, directly supporting roof and wall panels and transferring external loads to the main steel frame. Its lightweight and high-strength characteristics are perfectly reflected here.
-Light steel structure residential buildings: In the skeleton of low rise and multi story residential buildings, C-shaped steel is often used as wall columns, floor beams, and roof truss rafters, forming the so-called "cold-formed thin-walled light steel structure system", which has the advantages of fast construction, good seismic resistance, energy conservation and environmental protection.

-Building decoration and partitions: can be used for vertical keels of suspended ceilings, lightweight partition walls, etc., with convenient construction and sturdy structure.

2. Industrial manufacturing and equipment framework

-Mechanical equipment skeleton: Many small and medium-sized mechanical equipment, such as machine tool casings, conveyor line supports, test bench frames, etc., use C-shaped steel to construct the main structure. It not only provides the necessary rigidity, but its open slots also facilitate the installation of wires, air pipes, and accessories.
-Automobiles and Rail Transit: C-shaped steel components are also used in the interior structure of truck carriages, bus body frames, and some rail transit vehicles.

-Shelves and storage systems: The beams and columns of heavy-duty shelves are sometimes made of specially designed thick walled C-shaped steel to carry the weight of large goods.

3. Infrastructure and other fields

-Solar photovoltaic bracket: The support structure of photovoltaic power plants is largely made of hot-dip galvanized C-shaped steel, which is corrosion-resistant, strong, and flexible to install, and can perfectly adapt to various terrains and installation angles.

-Auxiliary structures of bridges: Customized C-shaped steel can also be used in some secondary structures such as maintenance channels and guardrails of bridges.

5. Summary

The C-shaped steel section, this seemingly simple geometric shape, is actually the crystallization of the wisdom of materials science and structural mechanics. It cleverly combines the "C" shape and "rolled edge" to fully utilize the performance of steel, achieving a high degree of unity in strength, stability, economy, and applicability. From the rafters that support grand factory buildings, to the skeleton that constitutes precision equipment, and to the brackets that support green energy, C-shaped steel has become a solid and reliable "backbone" in modern industrial civilization with its silent yet firm posture. Understanding and utilizing this efficient structural material is of great significance for promoting the industrialization of construction and achieving sustainable development.
